48V to 12V 3A POE+ Gigabit Splitter | USB-C Power Plug Tip | WiFiX | Remote power the InvisaGig v1.2

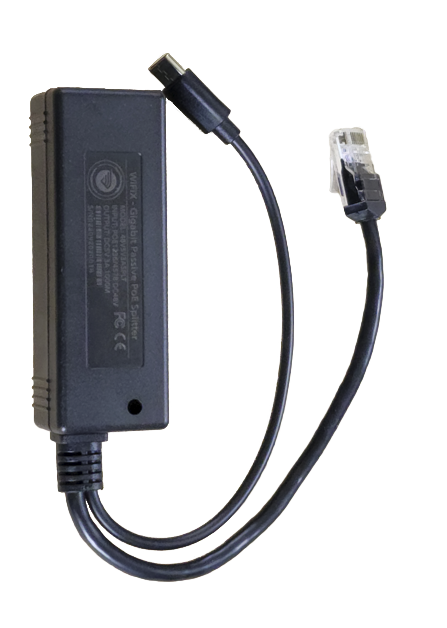

This WiFiX 48V to 12V 3A POE+ PASSIVE Gigabit Splitter, with USB-C Power Plug Tip, receives data and power over a single Cat7/Cat6A/Cat6/Cat5e Ethernet cable and splits the power and the data into two output cables (i.e, the USB-C power plug tip to provide 12 Volt 3 Amps of power to the device, and the RJ45 Ethernet cable to provide the data).  This will allow a non-PoE, 12 volt DC powered device to be remotely installed and powered over the Ethernet cable (PoE).

Designed specifically to work with the InvisaGig v1.2, but will work with any device that is 12VDC powered via USB plug. **USB is power only, all data is on the Ethernet tail.

The Splitter requires a 40V to 56 Volt PASSIVE PoE (power adapter) Gigabit Injector, or switch port, that combines (and injects) the power and the data into a single ethernet cable and sends it to this Splitter.  A 48V PoE power injector is typically used and may be installed within 100M of the Splitter.

The PoE Splitters supports Mode A (Pins 1,2 + 3,6-) and B (7,8 + 4,5-) for both IEEE 802.3af /802.3at standard protocol for supplying DC power.

802.3af (PoE) can deliver up to 15.4 watts per port over network cables with 12.95W assured to be available at the powered device.

802.3at (PoE+) can deliver up to 30 watts over network cables with 25.5 watts available to the receiving devices.  For this reason, PoE Plus is also known as High PoE.

The unit’s data rate of Gigabit 10/100/1000 (GbE) transfer supports an ultra-fast maximum data rate of 1 Gigabit per second (Gbps - 1000 Mbps) and does not affect the speed performance of the local area network and devices. This splitter DOES operate with 2.5G Ethernet speeds.

The Splitter is equipped with a USB-C Power Plug Tip which is compatible with most modern power connectors, as well as with numerous types of adapters.

SPECIFICATIONS:
